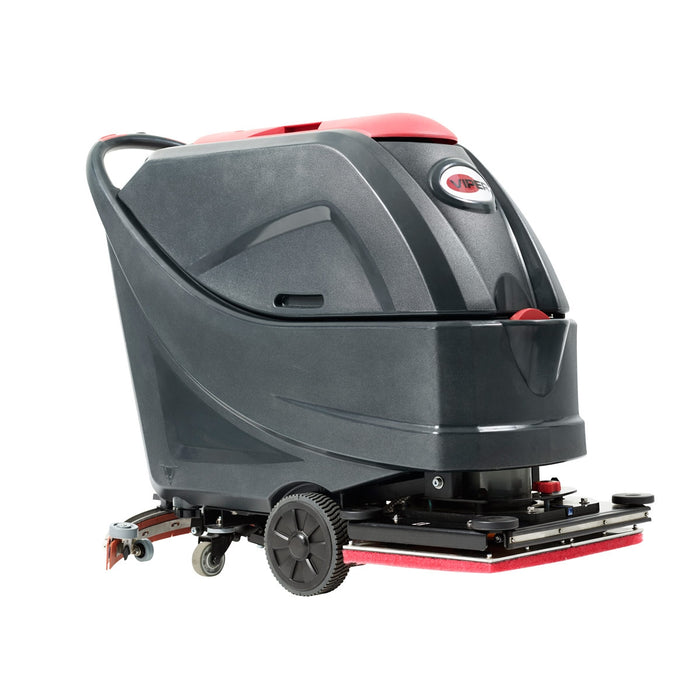

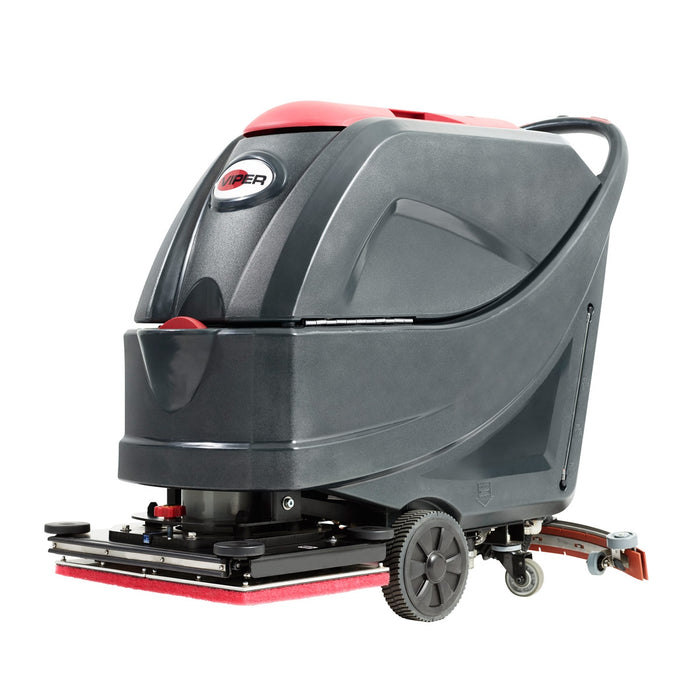

Viper Orbital Auto Scrubber w/ Traction Drive (14" x 20" Head) - 16 Gallons

SKU: VIP-56394138    Brand:Viper
Original price $6,579.00 - Original price $6,579.00
Original price
$6,579.00 - $6,579.00
Current price $6,579.00
Temporarily On BackorderEstimated Ship Date 1 – 3 wksOrder Now to Reserve
Sold Individually

Product Description

Much like the Viper's 20" Industrial Auto Scrubber, this 14" x 20" Viper orbital scrubber is a highly productive model with battery endurance and tank capacity to clean for hours. These models feature a comfortable ergonomic design while also offering simple controls for quick training. Both can clean up to 23,680 ft² per hour while sporting an extra-large 16-gallon solution tank and 16-gallon recovery tank.

The biggest difference with this AS5160TO™ model is that it features an orbital head. This head rotates at a powerful 2200 rotations per minute and is an efficient way to deeply clean your floor. The multi-directional head keeps more water and chemicals in the pads while scrubbing to help with the environment and your pocketbook. The 14" x 20" pad holder can equip any 14" x 20" scrubbing, polishing, or stripping pad.

Viper scrubbers are built well-balanced and easy to maneuver. This model holds true to this while also featuring a traction drive to help you clean up to 2.5 mph to allow you to set the cleaning pace to just how you want it. As with all of the Viper auto scrubbers that we offer, this scrubber is backed by a great warranty (8 years on the body and 5 years on parts) to make sure your Viper machine gives you years of use!

red floor spacer pad Very Important:red spacer pad is recommended for use on this oscillating floor machine. If you attach some of the thinner accessories to the underside of your machine it will damage your floor. The pad driver has many small pins that hold a pad on - without enough padding those pins will score your flooring.


  • Efficient: 14" x 20" Scrubbing width - maxes out at a cleaning rate of 23,680 ft²/hr.
  • Powerful: Orbital head rotates at 2200 RPM to clean deep into your floors.
  • Easy to use: Simple controls allow for quick training and easy operation. Traction control pushes the machine along for you.
  • Monitoring: An hour meter allows you to keep track of how long the machine has been ran for.
  • Productivity: High capacity of 16-gallon water tank / 16-gallon recovery tank allows for maximum coverage.

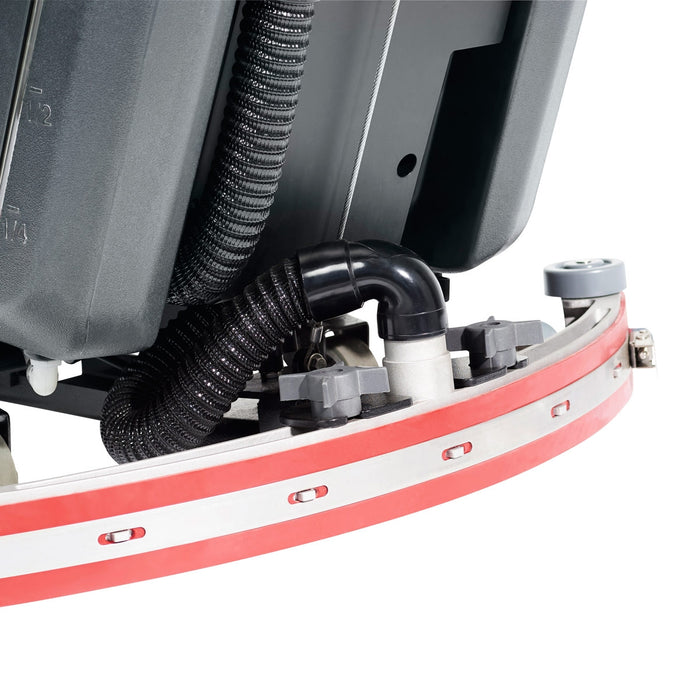

  • Robustness: Steady chassis system, rotationally molded tanks & heavy-duty 31" aluminum squeegee assembly.
  • Reliability: backed by an 8-year warranty on the tanks & 5 years on parts.

Quick Overview

  • Orbital-style scrub head
  • 14 x 20-inch scrubbing path
  • Traction drive system
  • 16-gallon solution tank
  • 16-gallon recovery tank
  • Comes w/ batteries, on-board charger & pad driver
  • 2.5-hour run time

Customer Reviews

Be the first to write a review


Viper AS5160T Use and care

Product Information + Specs

Manufacturer Sku
130 Ah wet batteries
Battery Type
(2) 130 Ah Wet
Brush Motor
750 Watts
Brush/Pad Pressure
110 lbs.
Brush/Pad Speed
2200 RPM
Cleaning Rate Per Hour
23,680 sq. ft.
Cleaning Width
20 inches
Black / Red
52" L x 22" W x 39" H
Drive System
Traction Drive
Flow Control
0 - 0.63 gal/min
130 Ah wet batteries, onboard charger, pad holder
Noise Level (dB)
69 ± 3 dBA
Packaged Weight (lbs.)
Power Source
Product Type
Hard Floor Cleaning Machines
Recovery Tank Capacity
16 gallons
Run Time
2.5 hours
Scrub Style
Solution Capacity
16 gallons
Square Footage Cleaned on a Full Charge (Run Time * Rate)
59,200 sq.ft.
Squeegee Width
31 inches
Vacuum Motor
350 Watts
Body - 8 years (2 years labor*)
Parts - 5 years (2 years labor*)
Vac Motor - 1 year (1 year labor*)
Batteries - Prorated up to 18 months
Travel - 180 days
*All labor must be from an authorized service center.
Water Lift
